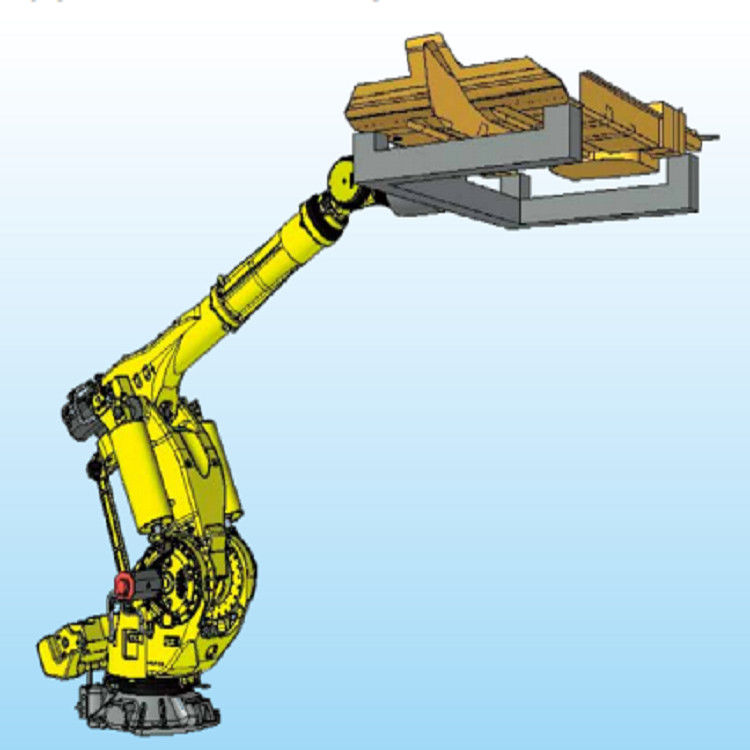

M-900iB 6 axis 700 payload robot arm for weld and industrial robot arm
Product image
DESCRIPTION | ||
Product name | M-900iB 6 axis robot arm for weld and industrial robot arm | |
Model | M-900iB | |
Controlled axes | 6 | |
Type | Articulated Type | |
Installation | Floor | |
Motion range | J1 | 360%(110%) 6.28rad (1.92rad/s) |
J2 | 154%(80%) 2.69rad (1.40rad/s) | |
J3 | 160%(80%) 2.79rad (1.40rad/s) | |
J4 | 720%(100%) 12.57rad (1.75rad/s) | |
J5 | 244%(100%) 4.26rad (1.75rad/s) | |
J6 | 720%(160%) 12.57rad (2.79rad/s) | |
Max.load capacity at wrist | 700kg | |
Drive method | Electric servo drive by AC servo motor | |
Repeatability | ±0.1mm | |
Mass | 2800kg |
