Chinese Cnc 6 Axis Robot Arm CNGBS-G05 For Palletizing Cobot Robot

Basic Information
Brand Name: CNGBS
Model Number: G05
Minimum Order Quantity: 1
Price: negatiation
Packaging Details: GBSCN mig welding robot GBS6-C1400 With Ehave CM350AR 6 axis robot china 6 axis robot china fumigation wooden box
Delivery Time: 4-12 week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50
Product Name: Chinese Brand Collaborative Robot CNGBS-G05 6 Axis Cobot Arm Model: G05
Brand: CNGBS Number Of Axes: 6
Mounting Position: Floor/ Ceiling/Wall Payload: 5KG
Weight: 23KG Protection Rating: IP65
Materials: Aluminium, PP Plastics Reach: 800mm
High Light:

Palletizing Cnc Robot Arm

,

Cobot Robot Arm 6 Axis

,

Aluminium Cnc Robot Arm

Chinese brand cheap cnc arm 6 axis robot CNGBS-G05 palletizing robot for cobot robot

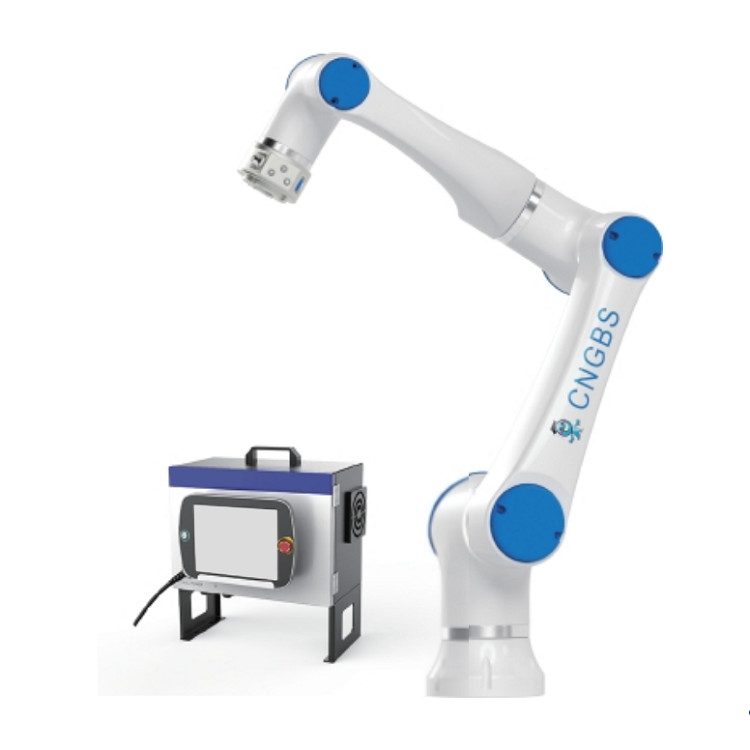

Product image

Chinese brand cheap cnc arm 6 axis robot  CNGBS-G05 palletizing robot for cobot robot



Product Description

Safer work
With CNGBS robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
CNGBS robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines. Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Easier Operation
CNGBS robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.

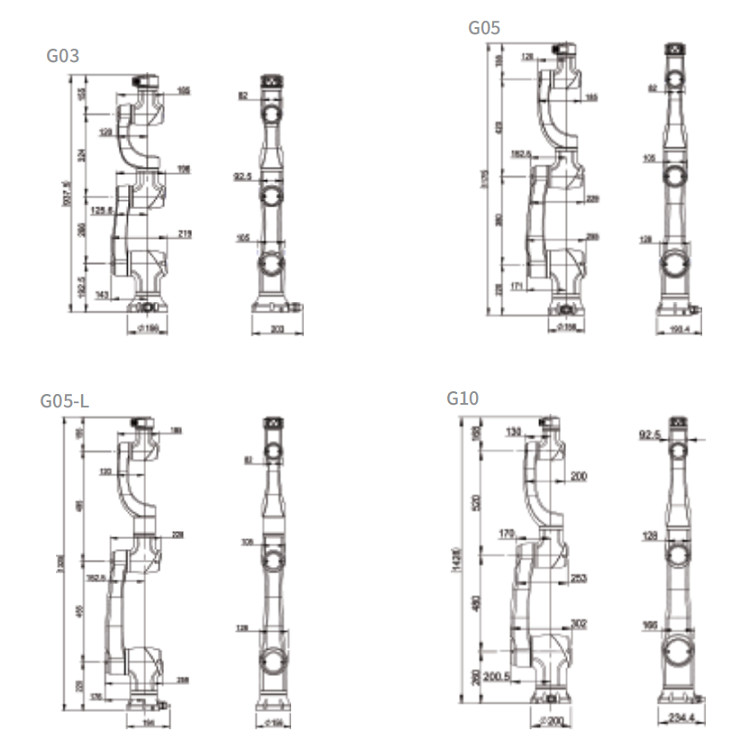

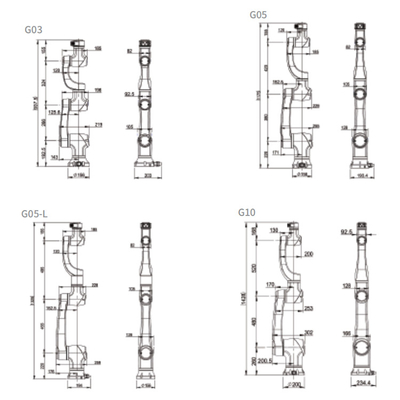

Specifications
type G03 G05 G05-L G10 G15
weight 17kg 23KG 24KG 40KG 45KG
payload 3kg 5kg 3.5kg 10kg 15kg
reach 590mm 800mm 950mm 1000mm 700mm
power 100W in typical cycle 180W in typical cycle 350W in typical cycle 450W in typical cycle
joint range ±360°
joint speed J1-J4 180°/S J5-J6 200°/S J1-J4 180°/S J5-J6 200°/S J1-J4 180°/S J5-J6 200°/S J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S
tool speed 2m/s
repeatability ±0.05mm/±0.03mm(under normal conditions)
degree of freedom 6
control box size 536*445*319mm
end I/O port digital input:3,digital output:3,analog input:2
control box I/O port digital input:16,digital output:16, analog input:2,analog output:2
I/O source 24V 2A
communication TCP/IP/MODBUS
programming graphical programming,remote process call
IP classification IP54/IP66
collaborative operation 10 advanced configurations for safety
main material aluminum alloy
working temperature 0-50℃
power input 200-240V AC,50-60Hz
cable cable to connect the control box:5m,cable to connect teach pendant:5m
