Electric Drive Fanuc Robot Arm 12kg Payload Robotic Welding Arm High Precision

Basic Information
Brand Name: FANUC
Model Number: M-10iA/12S M-10iA/7L M-20iA/12L
Minimum Order Quantity: 1
Price: negatiation
Packaging Details: FANUC automatic robot M-10iA/12S M-10iA/7L M-20iA/12L robot arm 6 axis and industrial robot with 3-FINGERS GRIPPER packed with fumigation box
Delivery Time: 4-12 week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50
Product Name: FANUC Automatic Robot M-10iA/12S M-10iA/7L M-20iA/12L Robot Arm 6 Axis And Industrial Robot With 3-FINGERS GRIPPER Model: M-10iA/12S M-10iA/7L M-20iA/12L
Repeatability: ± 0.032mm Number Of Axes: 6
Reach: 1098mm Payload: 12kg
Installation: Floor/Upside-down ,Angle Mount Brand: FANUC
Drive Method: Electric Mass: 130kg
High Light:

delta robot arm

,

fanuc industrial robots

FANUC automatic robot M-10iA/12S M-10iA/7L M-20iA/12L robot arm 6 axis and industrial robot with 3-FINGERS GRIPPER



Product description



DESCRIPTION
Product name FANUC automatic robot M-10iA/12S M-10iA/7L M-20iA/12L robot arm 6 axis and industrial robot with 3-FINGERS GRIPPER
Model  M-10iA/12S M-10iA/7L M-20iA/12L
Controlled axes 6
Reach 1098mm
Installation Floor/Upside-down ,Angle mount
Motion range J1 340°/360° 5.93rad/6.28rad
J2 250° 4.36rad
J3 340° 5.93rad
J4 380° 6.63rad
J5 380° 6.63rad
J6 720° 12.57rad
Max.load capacity at wrist 12kg
Allowable load moment at wrist J4 220N.m
J5 220N.m
J6 9.8N.m
Allowable load inertia at wrist J4 0.65kg.m2
J5 0.65kg.m2
J6 0.17kg.m2
Repeatability ±0.03mm
Mass 130kg

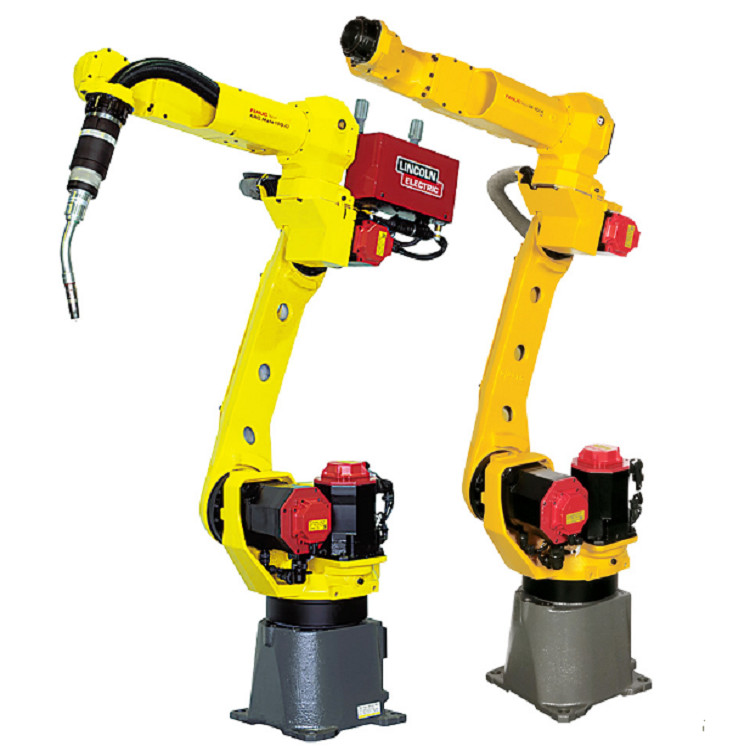

Product image

Electric Drive Fanuc Robot Arm 12kg Payload Robotic Welding Arm High Precision 0Electric Drive Fanuc Robot Arm 12kg Payload Robotic Welding Arm High Precision 1
